Delta Electronics
| Part Number | BFB04512HHA-A | Manufacturer | Delta Electronics |
|---|---|---|---|

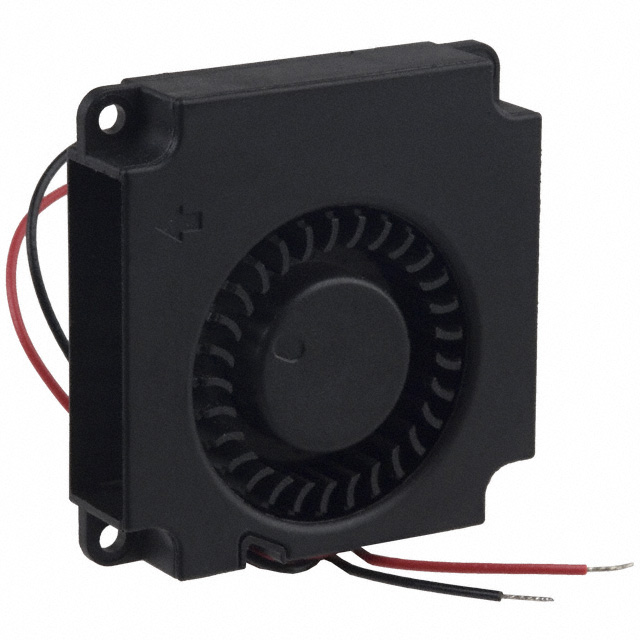

| Description | FAN BLOWER 45X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5985 pcs | Data sheet | BFB04512HHA-A.pdf |
| Width | 10.00mm | Weight | 0.029 lb (13.15g) |
| Voltage Range | 7 ~ 13.2VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.555 in H2O (138.2 Pa) |
| Size / Dimension | Square - 45mm L x 45mm H | Series | BFB |
| RPM | 6500 RPM | Power (Watts) | 1.68W |
| Other Names | BFB04512HHA BFB04512HHA-ND Q4756607 |
Operating Temperature | - |
| Noise | 35.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Locked Rotor Protection |
| Fan Type | Blower | Current Rating | 0.080A |
| Bearing Type | Ball | Approvals | CE, CSA, UL, VDE |
| Air Flow | 3.2 CFM (0.090m³/min) |
