Delta Electronics

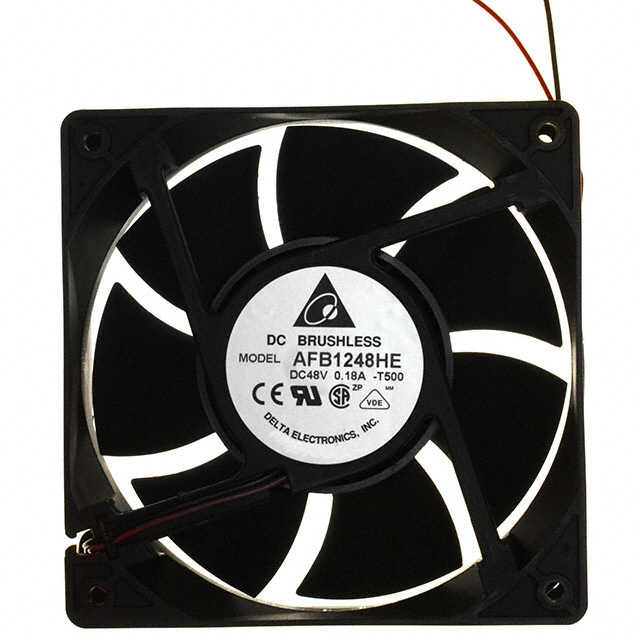

| Part Number | AFB1248HE-T500 | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 48VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2833 pcs | Data sheet | AFB1248HE-T500.pdf |
| Width | 38.00mm | Weight | 0.564 lb (255.83g) |
| Voltage Range | 28 ~ 56VDC | Voltage - Rated | 48VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.300 in H2O (74.7 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | AFB |
| RPM | 2600 RPM | Power (Watts) | 5.76W |
| Other Names | 603-1203 AFB1248HE-T500-ND AFB1248HET500 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Noise | 41.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.120A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 105.9 CFM (2.97m³/min) |
