Delta Electronics

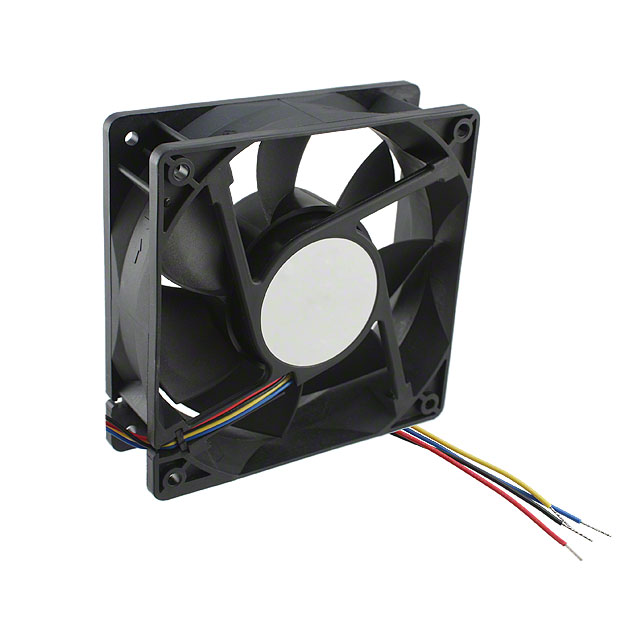

| Part Number | AFB1212HHE-TP02 | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4807 pcs | Data sheet | AFB1212HHE-TP02.pdf |
| Width | 38.00mm | Weight | 0.564 lb (255.83g) |
| Voltage Range | 10.8 ~ 13.2VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 0.354 in H2O (88.2 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | AFB |
| RPM | 2900 RPM | Power (Watts) | 4.80W |
| Other Names | 603-1212 AFB1212HHE-TP02-ND AFB1212HHETP02 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 44.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.400A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 120.1 CFM (3.36m³/min) |
