Delta Electronics

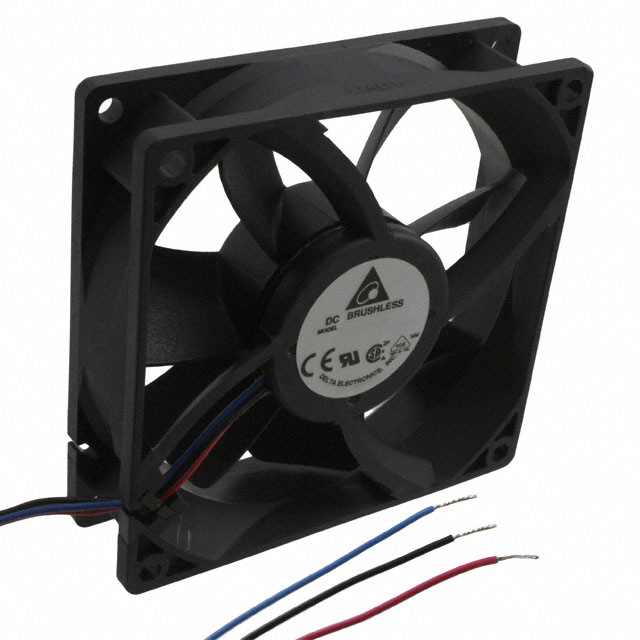

| Part Number | AFB0912SH-TZUG | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 92X25.4MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5380 pcs | Data sheet | AFB0912SH-TZUG.pdf |
| Width | 25.40mm | Weight | 0.265 lb (120.2g) |
| Voltage Range | 5 ~ 12.6VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.526 in H2O (131.0 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | AFB |
| RPM | 4800 RPM | Power (Watts) | 9.00W |
| Other Names | 603-1761 AFB0912SH-AZUG AFB0912SHTZUG |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 53.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.750A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 102.6 CFM (2.87m³/min) |
