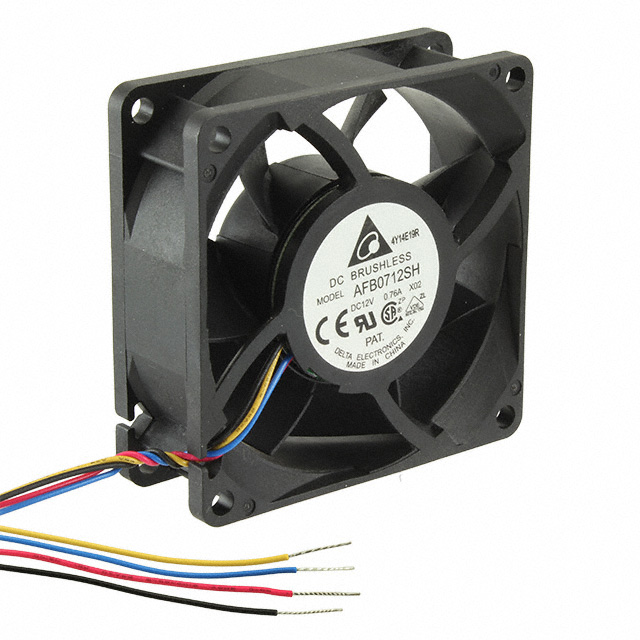

Delta Electronics
| Part Number | AFB0712SHX02 | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 70X25.4MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6407 pcs | Data sheet | AFB0712SHX02.pdf |
| Width | 25.40mm | Weight | 0.198 lb (89.81g) |
| Voltage Range | 5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 0.625 in H2O (155.7 Pa) |
| Size / Dimension | Square - 70mm L x 70mm H | Series | AFB |
| RPM | 6300 RPM | Power (Watts) | 7.80W |
| Other Names | 603-1836 AFB0712SHX02-ND Q8629644 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 50.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.650A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 61.1 CFM (1.71m³/min) |
