Delta Electronics

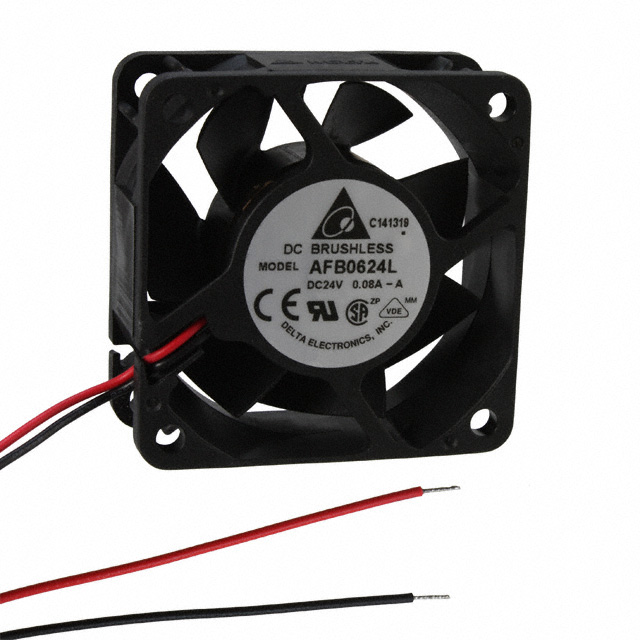

| Part Number | AFB0624L-A | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 60X25.4MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6502 pcs | Data sheet | AFB0624L-A.pdf |
| Width | 25.40mm | Weight | 0.176 lb (79.83g) |
| Voltage Range | 14 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.113 in H2O (28.1 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | AFB |
| RPM | 3100 RPM | Power (Watts) | 1.44W |
| Other Names | 603-1296 AFB0624L AFB0624LA |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 26.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.060A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 16.8 CFM (0.470m³/min) |
