Delta Electronics
| Part Number | AFB0612DH-TP11 | Manufacturer | Delta Electronics |
|---|---|---|---|

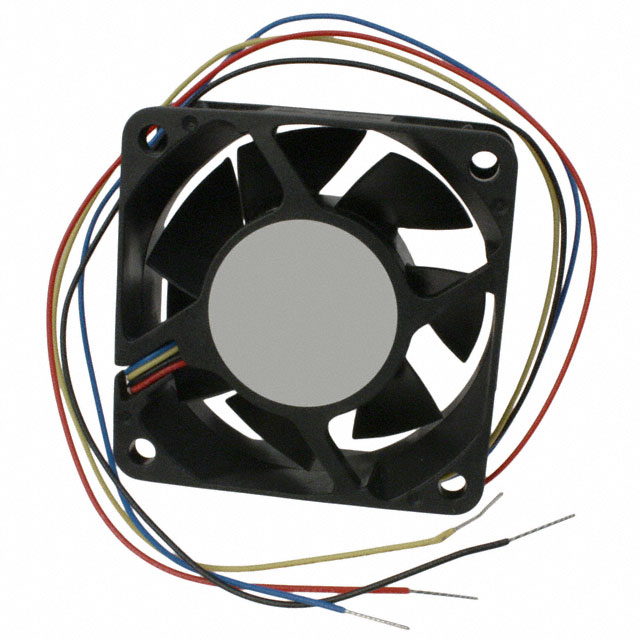

| Description | FAN AXIAL 60X25.4MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5250 pcs | Data sheet | AFB0612DH-TP11.pdf |
| Width | 25.40mm | Weight | 0.176 lb (79.83g) |
| Voltage Range | 10.8 ~ 13.2VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 0.926 in H2O (230.7 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | AFB |
| RPM | 9000 RPM | Power (Watts) | 10.10W |
| Other Names | 603-1211 AFB0612DH-TP11-ND AFB0612DHTP11 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 55.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.840A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 50.4 CFM (1.41m³/min) |
