HomeProductsResistorsChip Resistor - Surface MountWSR59L000FEA

WSR59L000FEA

Dale / VishayDale / Vishay

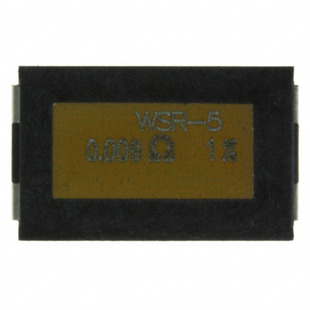

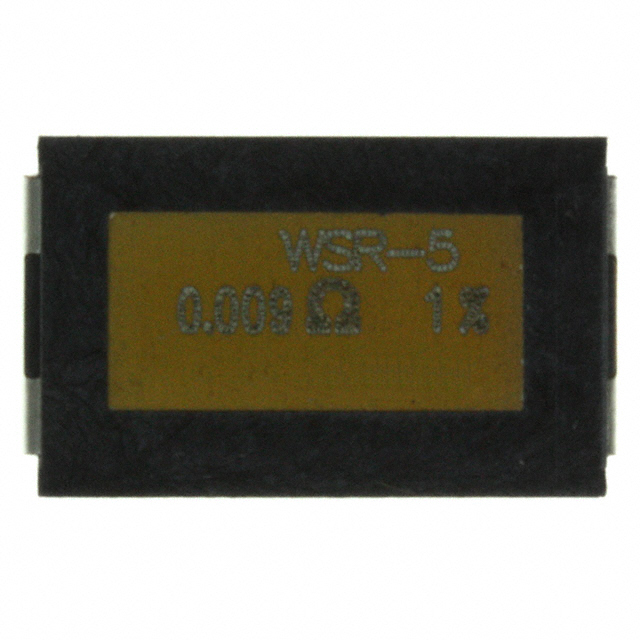

WSR59L000FEA Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: WSR59L000FEA
Manufacturer/Brand: Dale / Vishay
Product description RES 0.009 OHM 1% 5W 4527
Datasheets: WSR59L000FEA.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 81532 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 81532 pcs
Reference Price (In US Dollars)
1500 pcs
$0.478
3000 pcs
$0.469
7500 pcs
$0.464
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.478

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of WSR59L000FEA

Part Number WSR59L000FEA Manufacturer Dale / Vishay
Description RES 0.009 OHM 1% 5W 4527 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 81532 pcs Data sheet WSR59L000FEA.pdf
Tolerance ±1% Temperature Coefficient ±110ppm/°C
Supplier Device Package 4527 Size / Dimension 0.455" L x 0.275" W (11.56mm x 6.98mm)
Series WSR Resistance 9 mOhms
Power (Watts) 5W Packaging Tape & Reel (TR)
Package / Case 4527 J-Lead Other Names WSRC-.009TR
Operating Temperature -65°C ~ 275°C Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 45 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 0.100" (2.54mm)
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Failure Rate -
Detailed Description 9 mOhms ±1% 5W Chip Resistor 4527 J-Lead Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element Composition Metal Element
