HomeProductsResistorsResistor Networks, ArraysCSC05A01330RGPA

CSC05A01330RGPA

Dale / VishayDale / Vishay

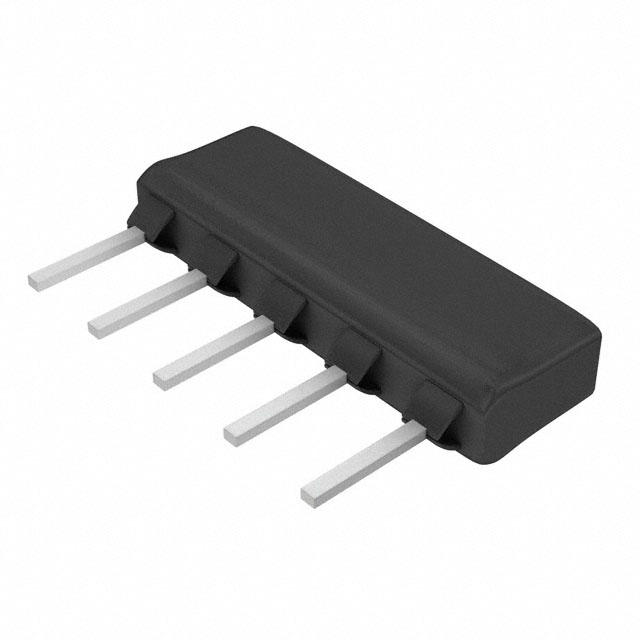

CSC05A01330RGPA Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: CSC05A01330RGPA
Manufacturer/Brand: Dale / Vishay
Product description RES ARRAY 4 RES 330 OHM 5SIP
Datasheets: CSC05A01330RGPA.pdf
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 96096 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 96096 pcs
Reference Price (In US Dollars)
2000 pcs
$0.378
6000 pcs
$0.374
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.378

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of CSC05A01330RGPA

Part Number CSC05A01330RGPA Manufacturer Dale / Vishay
Description RES ARRAY 4 RES 330 OHM 5SIP Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 96096 pcs Data sheet CSC05A01330RGPA.pdf
Tolerance ±2% Temperature Coefficient ±100ppm/°C
Supplier Device Package 5-SIP Size / Dimension 0.490" L x 0.098" W (12.45mm x 2.49mm)
Series CSC Resistor-Ratio-Drift ±50 ppm/°C
Resistor Matching Ratio - Resistance (Ohms) 330
Power Per Element 200mW Packaging Bulk
Package / Case 5-SIP Operating Temperature -55°C ~ 125°C
Number of Resistors 4 Number of Pins 5
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 35 Weeks Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Height - Seated (Max) 0.195" (4.95mm) Detailed Description 330 Ohm ±2% 200mW Power Per Element Bussed 4 Resistor Network/Array ±100ppm/°C 5-SIP
Circuit Type Bussed Applications -
