HomeProductsRelaysReed RelaysS1-0504D

S1-0504D

Cynergy3Cynergy3

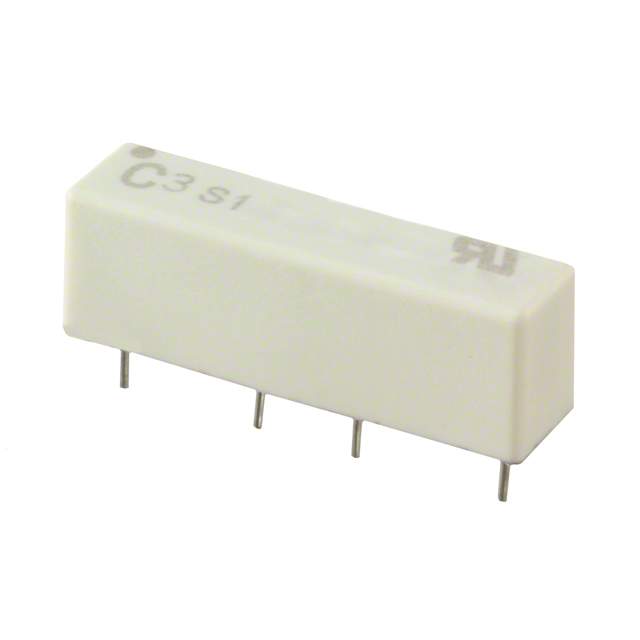

S1-0504D Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: S1-0504D
Manufacturer/Brand: Cynergy3
Product description RELAY REED 4KV SPST 5V SIP W/DIO
Datasheets: S1-0504D.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4626 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 4626 pcs
Reference Price (In US Dollars)
1 pcs
$7.29
10 pcs
$6.924
50 pcs
$6.195
100 pcs
$5.831
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$7.29

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of S1-0504D

Part Number S1-0504D Manufacturer Cynergy3
Description RELAY REED 4KV SPST 5V SIP W/DIO Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4626 pcs Data sheet S1-0504D.pdf
Turn On Voltage (Max) 4 VDC Turn Off Voltage (Min) 1.25 VDC
Termination Style PC Pin Switching Voltage 300VAC, 350VDC - Max
Series S1 Release Time 0.5ms
Packaging Bulk Other Names 725-1552
Operating Temperature -40°C ~ 85°C Operate Time 1ms
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 8 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features Diode Contact Rating (Current) 1A
Contact Material Rhodium (Rh) Contact Form SPST-NO (1 Form A)
Coil Voltage 5VDC Coil Type Non Latching
Coil Resistance 180 Ohms Coil Power 139 mW
Coil Current 27.8mA
