SCD684K102D3Z25-F

Cornell Dubilier ElectronicsCornell Dubilier Electronics

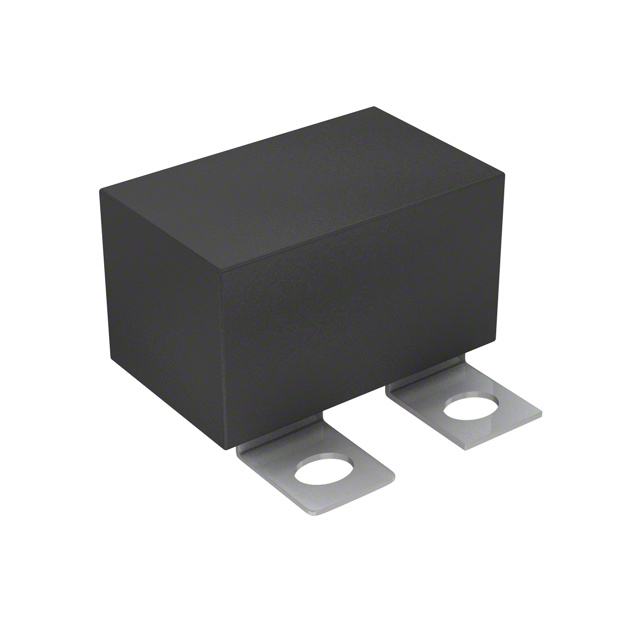

SCD684K102D3Z25-F Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SCD684K102D3Z25-F
Manufacturer/Brand: Cornell Dubilier Electronics
Product description CAP FILM 0.68UF 10% 1KVDC SCREW
Datasheets: SCD684K102D3Z25-F.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5349 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5349 pcs
Reference Price (In US Dollars)
10 pcs
$6.704
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$6.704

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SCD684K102D3Z25-F

Part Number SCD684K102D3Z25-F Manufacturer Cornell Dubilier Electronics
Description CAP FILM 0.68UF 10% 1KVDC SCREW Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5349 pcs Data sheet SCD684K102D3Z25-F.pdf
Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 500V
Tolerance ±10% Termination Screw Terminals
Size / Dimension 1.850" L x 1.142" W (47.00mm x 29.00mm) Series SCD
Ratings - Packaging Bulk
Package / Case Rectangular Box Operating Temperature -55°C ~ 85°C
Mounting Type Chassis Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 12 Weeks Lead Spacing 1.000" (25.40mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 1.051" (26.70mm)
Features - ESR (Equivalent Series Resistance) 7 mOhms
Dielectric Material Polypropylene (PP), Metallized Detailed Description 0.68µF Film Capacitor 500V 1000V (1kV) Polypropylene (PP), Metallized Rectangular Box
Capacitance 0.68µF Applications Snubber
