AHD475M2AF24B

Cornell Dubilier ElectronicsCornell Dubilier Electronics

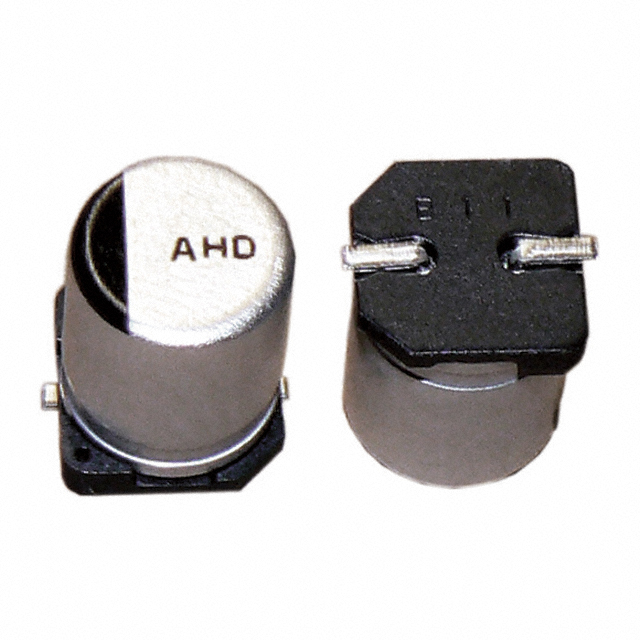

AHD475M2AF24B Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AHD475M2AF24B
Manufacturer/Brand: Cornell Dubilier Electronics
Product description CAP ALUM 4.7UF 20% 100V SMD
Datasheets: AHD475M2AF24B.pdf
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 6923 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6923 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AHD475M2AF24B

Part Number AHD475M2AF24B Manufacturer Cornell Dubilier Electronics
Description CAP ALUM 4.7UF 20% 100V SMD Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 6923 pcs Data sheet AHD475M2AF24B.pdf
Voltage - Rated 100V Tolerance ±20%
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm) Size / Dimension 0.315" Dia (8.00mm)
Series AHD Ripple Current @ Low Frequency 50mA @ 120Hz
Ripple Current @ High Frequency 85mA @ 10kHz Ratings -
Polarization Polar Packaging Bulk
Package / Case Radial, Can - SMD Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lifetime @ Temp. 5000 Hrs @ 105°C Lead Spacing -
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant Impedance 1.5 Ohms
Height - Seated (Max) 0.402" (10.20mm) ESR (Equivalent Series Resistance) 63.5 Ohm @ 120Hz
Detailed Description 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 63.5 Ohm @ 120Hz 5000 Hrs @ 105°C Capacitance 4.7µF
Applications General Purpose
