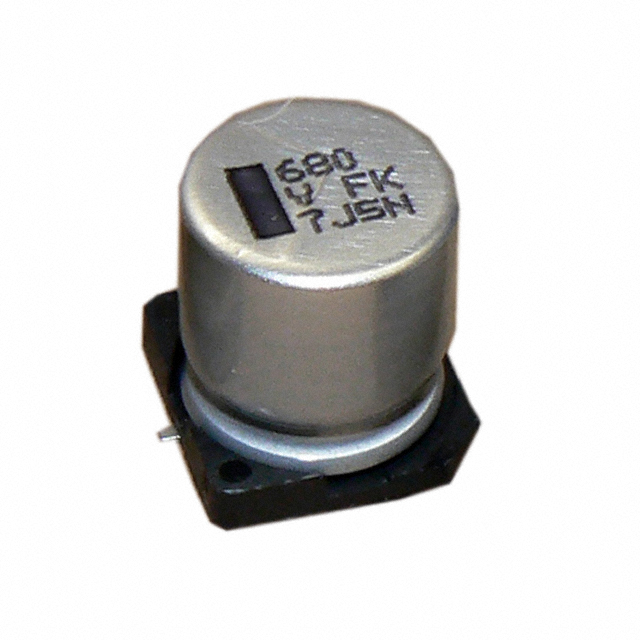

Cornell Dubilier Electronics
| Part Number | AFK158M06G24T-F | Manufacturer | Cornell Dubilier Electronics |
|---|---|---|---|
| Description | CAP ALUM 1500UF 20% 6.3V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 155351 pcs | Data sheet | AFK158M06G24T-F.pdf |
| Voltage - Rated | 6.3V | Tolerance | ±20% |
| Surface Mount Land Size | 0.406" L x 0.473" W (10.30mm x 12.00mm) | Size / Dimension | 0.394" Dia (10.00mm) |
| Series | AFK | Ripple Current @ Low Frequency | 637.5mA @ 120Hz |
| Ripple Current @ High Frequency | 850mA @ 100kHz | Ratings | AEC-Q200 |
| Polarization | Polar | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD | Other Names | 338-2157-2 AFK158M06G24T-F-ND AFK158M06G24TF |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 80 mOhms |
| Height - Seated (Max) | 0.413" (10.50mm) | ESR (Equivalent Series Resistance) | 80 mOhm @ 100kHz |
| Detailed Description | 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 80 mOhm @ 100kHz 2000 Hrs @ 105°C | Capacitance | 1500µF |
| Applications | Automotive, Bypass, Decoupling |
