SMTG1-01-Z

Copal Electronics

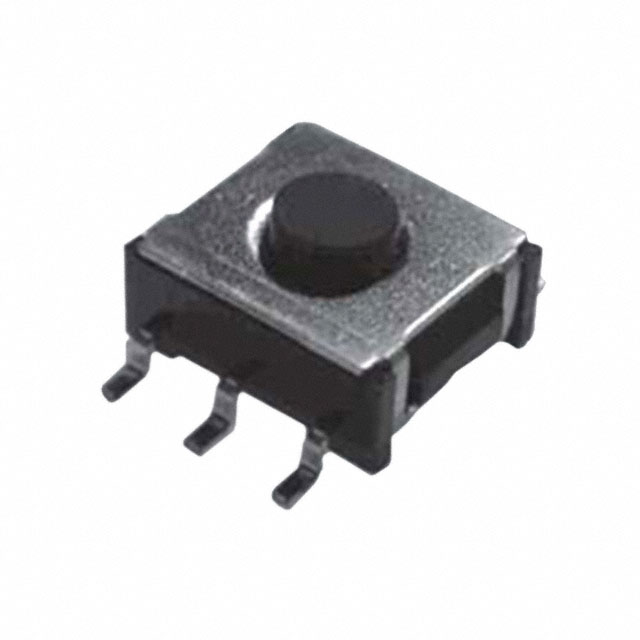

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SMTG1-01-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH TACTILE SPST-NO 0.05A 48V
Datasheets:	SMTG1-01-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	64147 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 64147 pcs

Reference Price (In US Dollars)

50 pcs: $0.541

100 pcs: $0.514

250 pcs: $0.501

500 pcs: $0.487

1000 pcs: $0.379

5000 pcs: $0.352

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.541

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SMTG1-01-Z

Part Number	SMTG1-01-Z	Manufacturer	Copal Electronics
Description	SWITCH TACTILE SPST-NO 0.05A 48V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64147 pcs	Data sheet	SMTG1-01-Z.pdf
Termination Style	Gull Wing	Switch Travel	0.50mm
Switch Function	Off-Mom	Series	SMT1
Packaging	Tube	Outline	7.50mm x 6.50mm
Operating Temperature	-25°C ~ 70°C	Operating Force	200gf
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount	Contact Rating @ Voltage	0.05A @ 48VDC
Circuit	SPST-NO	Actuator Type	Standard
Actuator Orientation	Top Actuated	Actuator Material	-
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	4.00mm
