CL-SB-22C-02

Copal Electronics

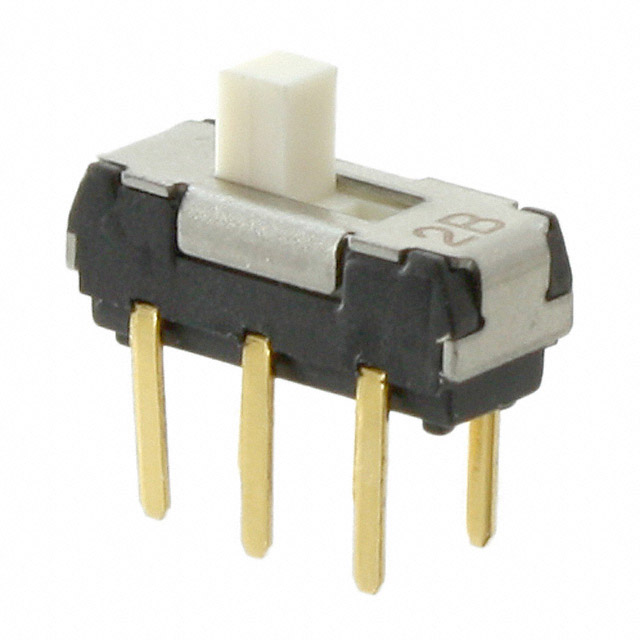

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CL-SB-22C-02
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH SLIDE DPDT 200MA 12V
Datasheets:	CL-SB-22C-02.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55578 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 55578 pcs

Reference Price (In US Dollars)

1 pcs: $0.564

10 pcs: $0.541

25 pcs: $0.53

50 pcs: $0.461

100 pcs: $0.449

250 pcs: $0.438

500 pcs: $0.368

1000 pcs: $0.345

5000 pcs: $0.317

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.564

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CL-SB-22C-02

Part Number	CL-SB-22C-02	Manufacturer	Copal Electronics
Description	SWITCH SLIDE DPDT 200MA 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55578 pcs	Data sheet	CL-SB-22C-02.pdf
Voltage Rating - DC	12V	Termination Style	PC Pin
Switch Travel	2.00mm	Switch Function	On-On
Series	CL-SB	Packaging	Bulk
Other Names	563-1347 CLSB22C02	Operating Temperature	-40°C ~ 85°C
Operating Force	153gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	200mA (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper
Contact Finish	Gold	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polyamide (PA), Nylon
Actuator Length	2.00mm
