CHP-080TA

Copal Electronics

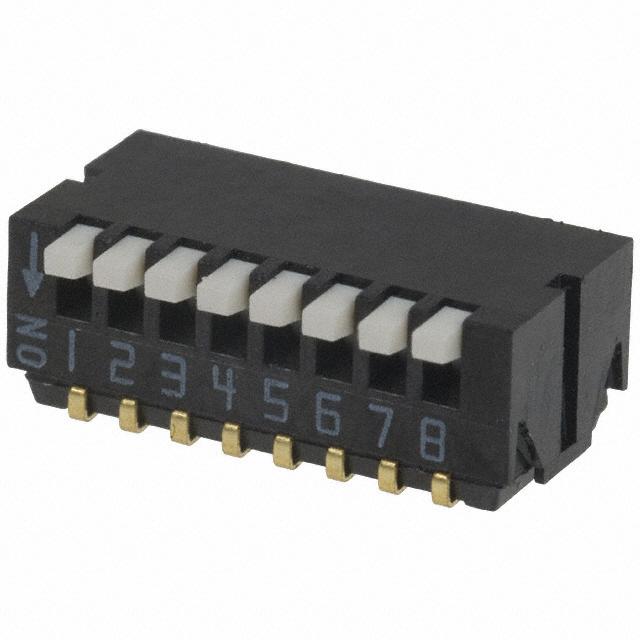

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CHP-080TA
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH PIANO DIP SPST 100MA 6V
Datasheets:	CHP-080TA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	49088 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 49088 pcs

Reference Price (In US Dollars)

500 pcs: $0.668

1000 pcs: $0.572

5000 pcs: $0.525

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.668

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CHP-080TA

Part Number	CHP-080TA	Manufacturer	Copal Electronics
Description	SWITCH PIANO DIP SPST 100MA 6V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	49088 pcs	Data sheet	CHP-080TA.pdf
Washable	No	Voltage Rating	6VDC
Termination Style	J Lead	Series	CHP
Pitch	0.050" (1.27mm), Half	Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C	Number of Positions	8
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Length	0.480" (12.19mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.181" (4.60mm)	Features	-
Electrical Life	1,000 Cycles	Detailed Description	Dip Switch SPST 8 Position Surface Mount, Right Angle Piano Actuator 100mA 6VDC
Current Rating	100mA	Contact Material	Copper Alloy
Contact Finish	Gold	Circuit	SPST
Body Material	Polyphenylene Sulfide (PPS)	Actuator Type	Piano
Actuator Level	Raised
