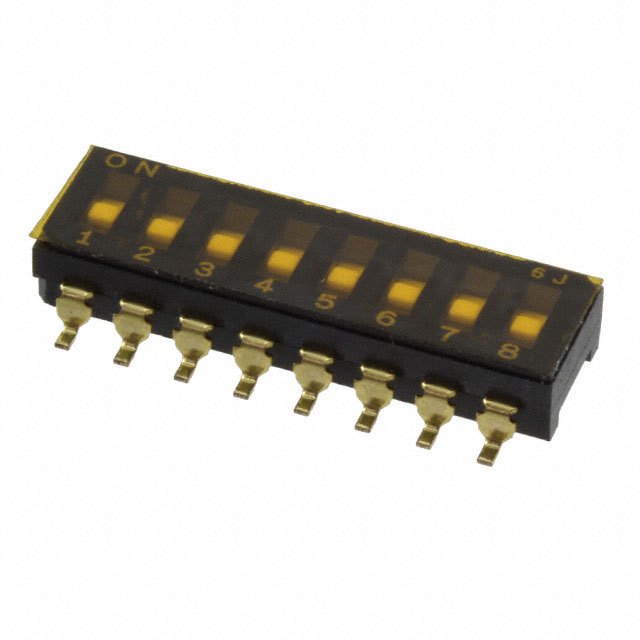

CFS-0800MB

Copal Electronics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CFS-0800MB
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH DIP SPST 100MA 6V
Datasheets:	CFS-0800MB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36046 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 36046 pcs

Reference Price (In US Dollars)

1 pcs: $0.831

20 pcs: $0.804

40 pcs: $0.763

60 pcs: $0.713

100 pcs: $0.696

260 pcs: $0.597

500 pcs: $0.58

1000 pcs: $0.497

5000 pcs: $0.456

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.831

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CFS-0800MB

Part Number	CFS-0800MB	Manufacturer	Copal Electronics
Description	SWITCH DIP SPST 100MA 6V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36046 pcs	Data sheet	CFS-0800MB.pdf
Washable	Yes	Voltage Rating	6VDC
Termination Style	Gull Wing	Series	CFS
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	563-1998-5	Operating Temperature	-40°C ~ 85°C
Number of Positions	8	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Length	0.858" (21.80mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.146" (3.70mm)
Features	Tape Seal	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC	Current Rating	100mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Flush, Recessed
