Copal Electronics

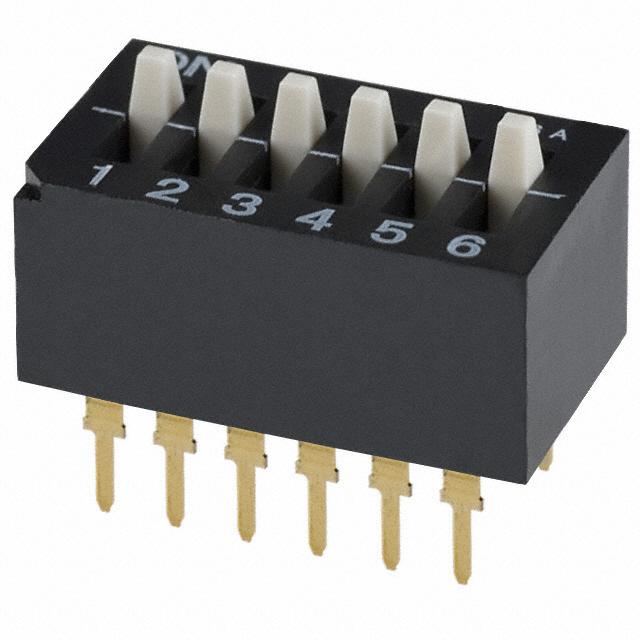

| Part Number | CES-0602MC | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 6V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67455 pcs | Data sheet | CES-0602MC.pdf |
| Washable | No | Voltage Rating | 6VDC |
| Termination Style | PC Pin | Series | CES |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tape & Box (TB) |
| Other Names | 563-1001-3 563-1001-5 563-1001-5-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 11 Weeks | Length | 0.702" (17.82mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.472" (12.00mm) |
| Features | - | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 100mA 6VDC | Current Rating | 100mA |
| Contact Material | Copper Alloy | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Slide (Standard) | Actuator Level | Raised |
