8SS2022-Z

Copal Electronics

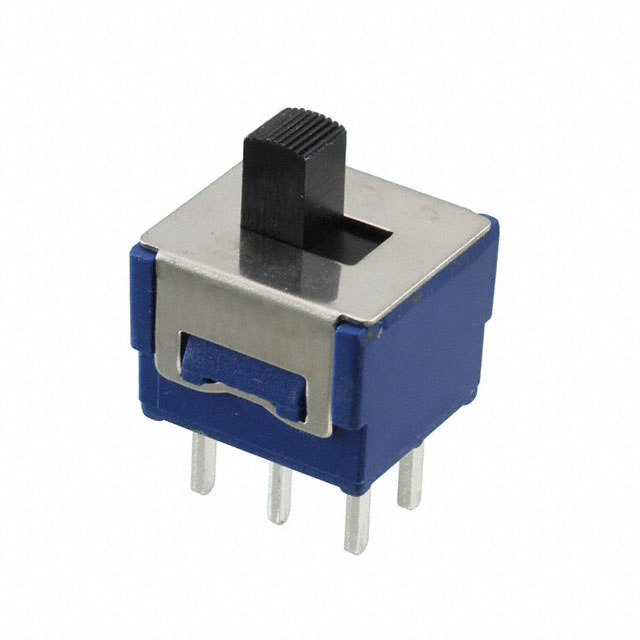

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8SS2022-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH SLIDE DPDT 6A 125V
Datasheets:	8SS2022-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19391 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 19391 pcs

Reference Price (In US Dollars)

1 pcs: $1.687

10 pcs: $1.606

25 pcs: $1.566

50 pcs: $1.526

100 pcs: $1.486

250 pcs: $1.366

500 pcs: $1.205

1000 pcs: $1.084

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.687

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8SS2022-Z

Part Number	8SS2022-Z	Manufacturer	Copal Electronics
Description	SWITCH SLIDE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19391 pcs	Data sheet	8SS2022-Z.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Travel	2.60mm
Switch Function	On-Off-On	Series	8SS
Packaging	Bulk	Other Names	563-1627
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Electrical Life	20,000 Cycles	Detailed Description	Slide Switch DPDT Through Hole
Current Rating	6A (AC), 4A (DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	-	Contact Finish	Silver
Circuit	DPDT	Actuator Type	Standard
Actuator Material	-	Actuator Length	5.00mm
