8E3011-Z

Copal Electronics

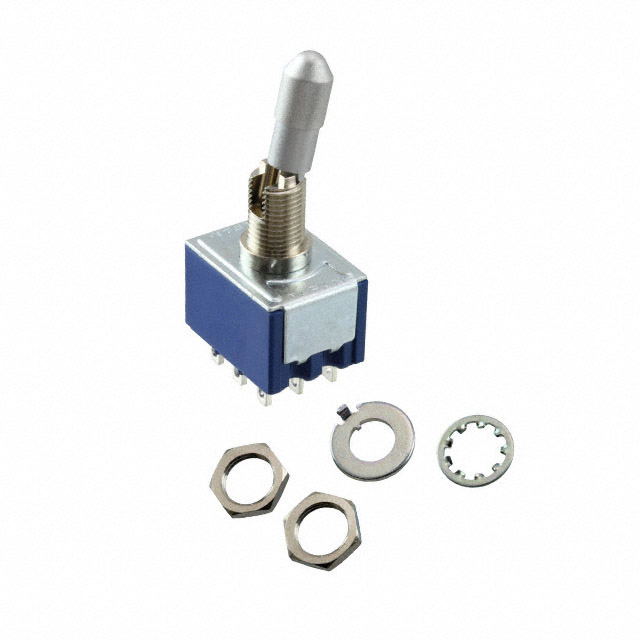

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8E3011-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH TOGGLE 3PDT 6A 125V
Datasheets:	8E3011-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8377 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8377 pcs

Reference Price (In US Dollars)

1 pcs: $4.183

10 pcs: $4.073

25 pcs: $3.963

50 pcs: $3.743

100 pcs: $3.633

250 pcs: $3.523

500 pcs: $2.972

1000 pcs: $2.862

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.183

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8E3011-Z

Part Number	8E3011-Z	Manufacturer	Copal Electronics
Description	SWITCH TOGGLE 3PDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8377 pcs	Data sheet	8E3011-Z.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-On
Series	8E	Panel Cutout Dimensions	Circular - 6.50mm Dia
Packaging	Bulk	Other Names	563-1696
Operating Temperature	-20°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Sealed - Flux Protection
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch 3PDT Panel Mount
Current Rating	6A (AC), 4A (DC)	Circuit	3PDT
Bushing Thread	1/4-40	Actuator Type	Locking Lever
Actuator Material	-	Actuator Length	16.50mm
