8D2022-Z

Copal Electronics

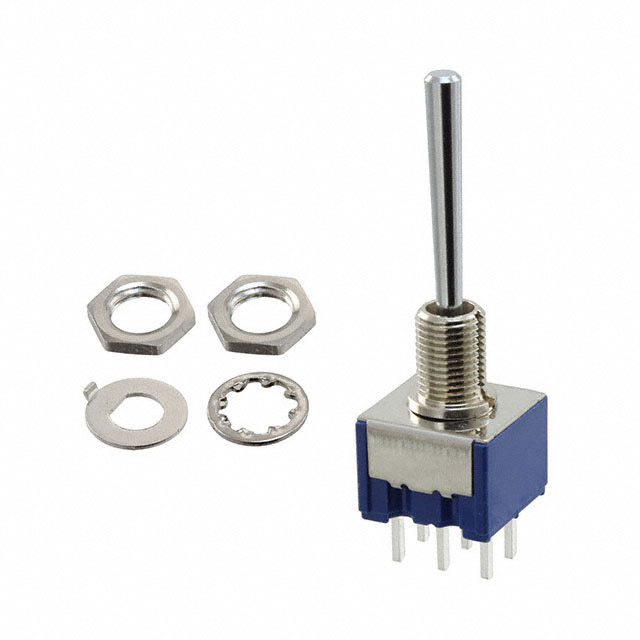

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8D2022-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH TOGGLE DPDT 6A 125V
Datasheets:	8D2022-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21507 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 21507 pcs

Reference Price (In US Dollars)

1 pcs: $1.73

10 pcs: $1.649

25 pcs: $1.608

50 pcs: $1.567

100 pcs: $1.526

250 pcs: $1.402

500 pcs: $1.237

1000 pcs: $1.113

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.73

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8D2022-Z

Part Number	8D2022-Z	Manufacturer	Copal Electronics
Description	SWITCH TOGGLE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21507 pcs	Data sheet	8D2022-Z.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Off-On
Series	8D	Panel Cutout Dimensions	Circular - 6.50mm Dia
Packaging	Bulk	Other Names	563-1679
Operating Temperature	-20°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Sealed - Flux Protection
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	6A (AC), 4A (DC)	Circuit	DPDT
Bushing Thread	1/4-40	Actuator Type	Standard Round
Actuator Material	-	Actuator Length	21.30mm
