1309P200

Copal ElectronicsCopal Electronics

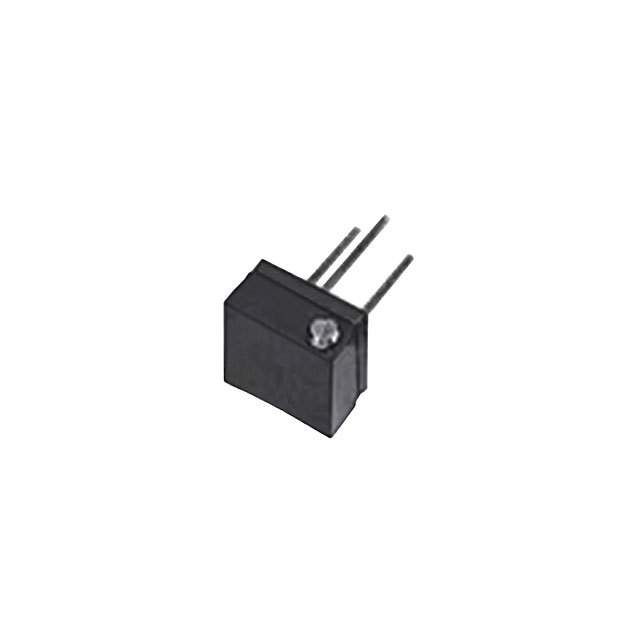

1309P200 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 1309P200
Manufacturer/Brand: Copal Electronics
Product description TRIMMER 20 OHM 0.5W PC PIN SIDE
Datasheets: 1309P200.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4182 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4182 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 1309P200

Part Number 1309P200 Manufacturer Copal Electronics
Description TRIMMER 20 OHM 0.5W PC PIN SIDE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4182 pcs Data sheet 1309P200.pdf
Tolerance ±10% Termination Style PC Pins
Temperature Coefficient ±50ppm/°C Size / Dimension Square - 0.374" x 0.374" Face x 0.197" H (9.50mm x 9.50mm x 5.00mm)
Series 1309 Resistive Material Wirewound
Resistance 20 Ohms Power (Watts) 0.5W, 1/2W
Packaging Tube Number of Turns 19
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description 20 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Wirewound 19 Turn Side Adjustment
Adjustment Type Side Adjustment
