W8C82-6SG-528

Conxall / Switchcraft

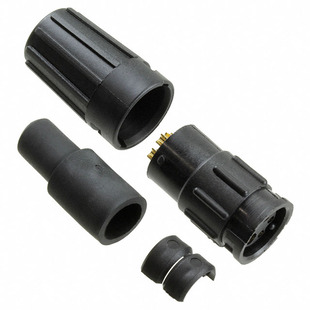

Image may be representation. See specifications for product details.

Product Overview

Part Number:	W8C82-6SG-528
Manufacturer/Brand:	Conxall / Switchcraft
Product description	CONN RCPT FMALE 6POS SOLDER CUP
Datasheets:	1.W8C82-6SG-528.pdf 2.W8C82-6SG-528.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7823 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7823 pcs

Reference Price (In US Dollars)

1 pcs: $4.472

10 pcs: $4.065

25 pcs: $3.964

50 pcs: $3.659

100 pcs: $3.456

250 pcs: $3.151

500 pcs: $3.109

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.472

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of W8C82-6SG-528

Part Number	W8C82-6SG-528	Manufacturer	Conxall / Switchcraft
Description	CONN RCPT FMALE 6POS SOLDER CUP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7823 pcs	Data sheet	1.W8C82-6SG-528.pdf 2.W8C82-6SG-528.pdf
Voltage Rating	125V	Termination	Solder Cup
Shielding	Unshielded	Shell Size, MIL	-
Shell Size - Insert	-	Shell Material	Thermoplastic
Shell Finish	-	Series	Mini-Con-X®
Packaging	Bulk	Other Names	SC2342
Orientation	Keyed	Operating Temperature	-40°C ~ 85°C
Number of Positions	6 (4 + 2 Power)	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Material Flammability Rating	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insert Material	Thermoplastic	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Backshell, UV Resistant	Fastening Type	Bayonet Lock
Detailed Description	6 (4 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup Gold	Current Rating	4A, 10A
Contact Material	Copper Alloy	Contact Finish Thickness - Mating	-
Contact Finish - Mating	Gold	Connector Type	Receptacle, Female Sockets
Color	Black	Cable Opening	0.260" ~ 0.285" (6.60mm ~ 7.24mm)
Backshell Material, Plating	Thermoplastic	Applications	Automotive, Communication Systems, Instrumentation
