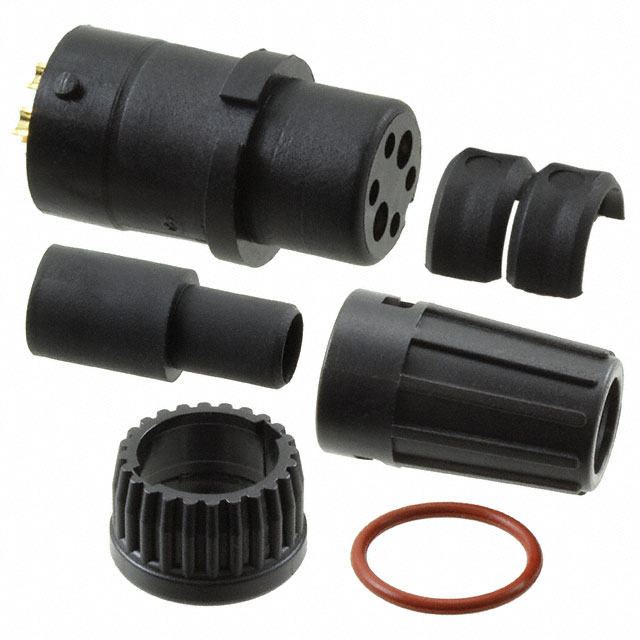

Conxall / Switchcraft
| Part Number | W6C82-6SG-528 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8583 pcs | Data sheet | 1.W6C82-6SG-528.pdf2.W6C82-6SG-528.pdf |
| Voltage Rating | 125V | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Thermoplastic |
| Shell Finish | - | Series | Mini-Con-X® |
| Packaging | Bulk | Other Names | SC2336 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 6 (4 + 2 Power) | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Thermoplastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut, UV Resistant |
| Fastening Type | Bayonet Lock | Detailed Description | 6 (4 + 2 Power) Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | 4A, 10A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | 0.260" ~ 0.285" (6.60mm ~ 7.24mm) | Backshell Material, Plating | Thermoplastic |
| Applications | Automotive, Communication Systems, Instrumentation |
