Conxall / Switchcraft
| Part Number | ST10U | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|

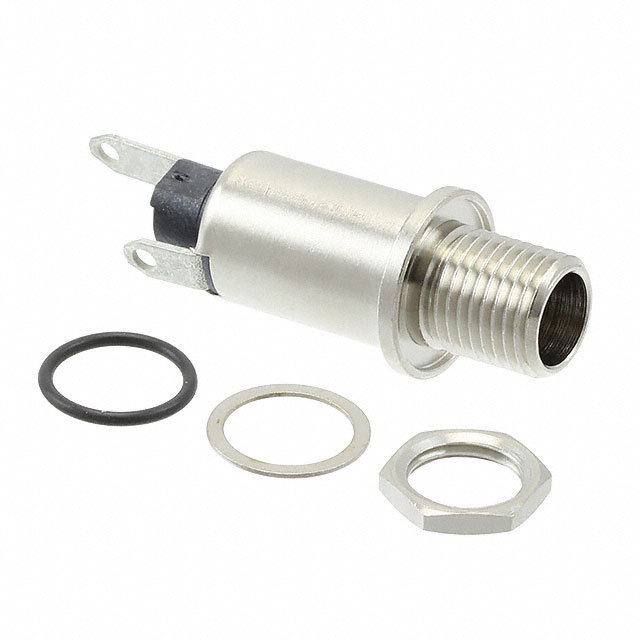

| Description | CONN POWER JACK SOLDER EYELET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14209 pcs | Data sheet | 1.ST10U.pdf2.ST10U.pdf |
| Voltage - Rated | 24VAC/DC | Thread Size | 5/16"-32 |
| Termination | Solder Eyelet(s) | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | SC2073 | Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | Mounting Type | Panel Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer | Housing Material | Thermoplastic |
| Gender | Female | Features | Mounting Hardware |
| Detailed Description | Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount | Current Rating | 10A |
| Contact Material - Plating | Tin | Contact Material | Copper Alloy |
| Connector Type | Jack | Body Material | Copper Alloy |
| Body Color | Silver, Black | Actual Diameter | 0.076" (1.93mm ID), 0.226" (5.75mm OD) |
