Conxall / Switchcraft

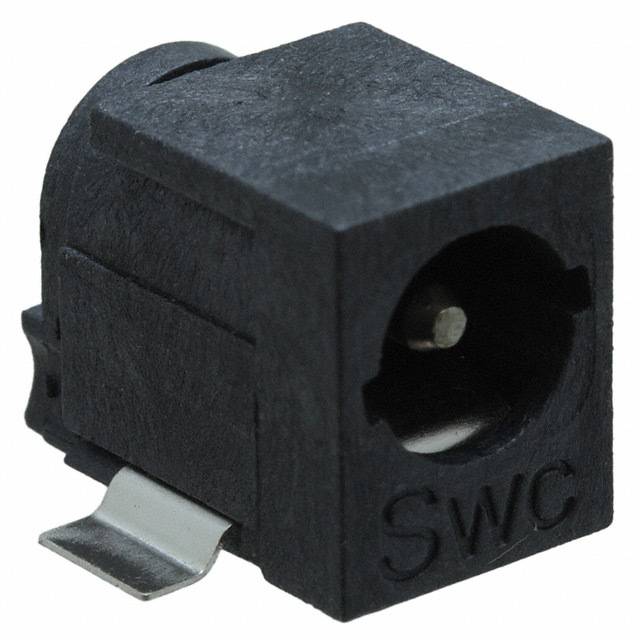

| Part Number | RASM722BK | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PWR JACK 2X5.5MM SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 42076 pcs | Data sheet | RASM722BK.pdf |
| Voltage - Rated | - | Thread Size | - |
| Termination | Solder | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | MASM722BK MASM722BK-ND RASM722BK-ND RASM722BKX RASM722BKX-ND SC1866 |
Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - | Mating Length/Depth | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") | Includes | - |
| Housing Material | Thermoplastic | Gender | Male |
| Features | - | Detailed Description | Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Right Angle |
| Current Rating | 5A | Contact Material - Plating | Tin |
| Contact Material | Copper Alloy | Connector Type | Jack |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.078" (2.00mm ID), 0.248" (6.30mm OD) |
