Conxall / Switchcraft
| Part Number | RASM10PS | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PWR JACK 2X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15545 pcs | Data sheet | RASM10PS.pdf |
| Voltage - Rated | 24VDC | Thread Size | 5/16"-32 |
| Termination | Solder | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | SC1928 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Surface Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | IP68 | Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |

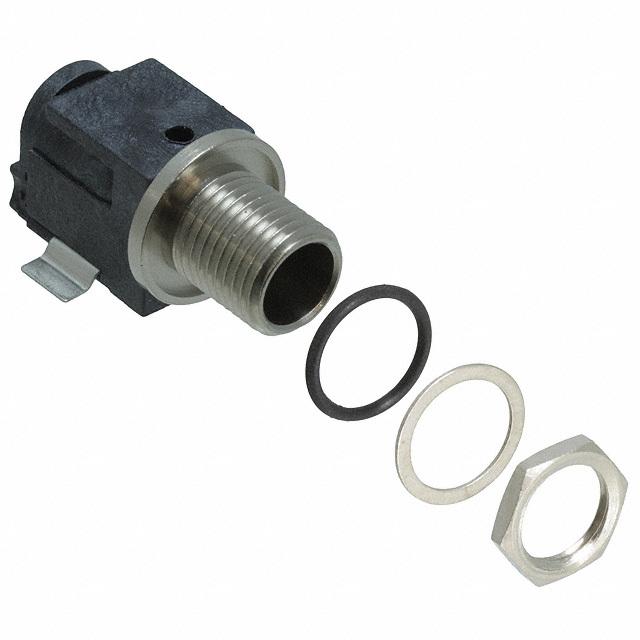

| Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer | Housing Material | Thermoplastic |
| Gender | Male | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount | Current Rating | 11A |
| Contact Material - Plating | Silver | Contact Material | Copper Alloy |
| Connector Type | Jack | Body Material | - |
| Body Color | Black | Actual Diameter | 0.078" (2.00mm ID), 0.252" (6.40mm OD) |
