Conxall / Switchcraft

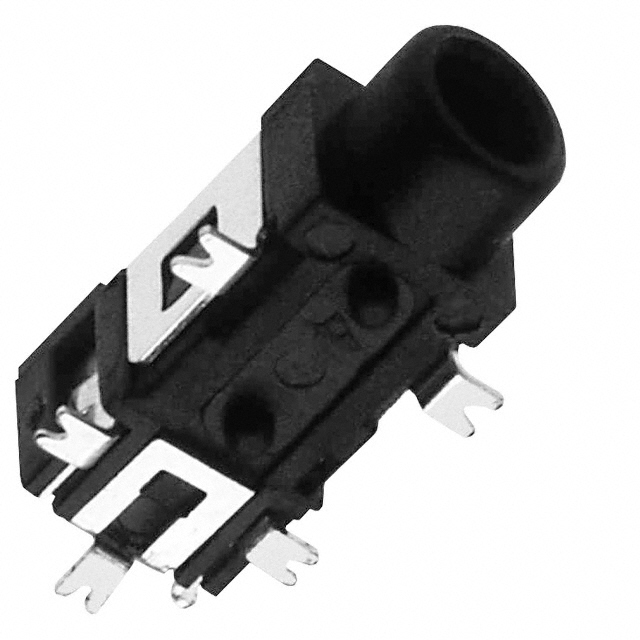

| Part Number | MDSMT4BRATR | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 2.5MM SMD R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3472 pcs | Data sheet | 1.MDSMT4BRATR.pdf2.MDSMT4BRATR.pdf |
| Voltage - Rated | - | Thread Size | - |
| Termination | Solder | Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded | Series | MDSMT |
| Panel Hole Size | - | Packaging | Tape & Reel (TR) |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Internal Switch(s) | Two Switches |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | - | Housing Material | Thermoplastic |
| Gender | Female | Features | Board Guide |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder | Current Rating | 3A |
| Contact Material - Plating | Silver | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.102" (2.60mm) |
