ITT Cannon, LLC

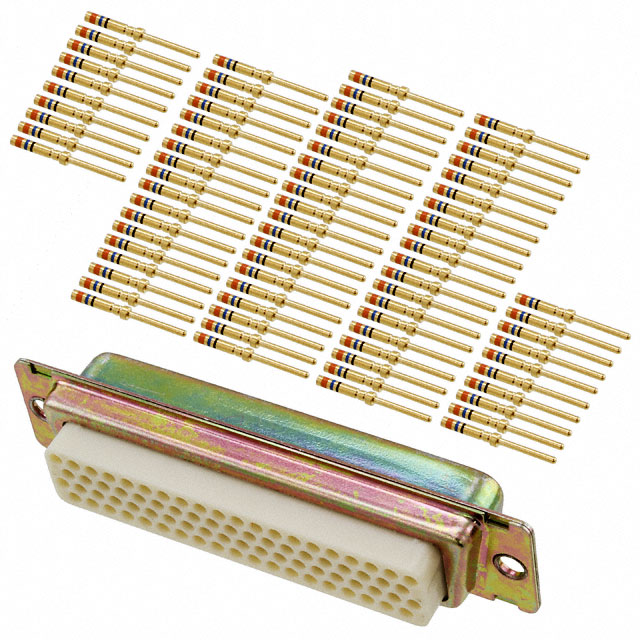

| Part Number | M24308/4-15Z | Manufacturer | ITT Cannon, LLC |
|---|---|---|---|
| Description | CONN DSUB HD PLUG 78POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2615 pcs | Data sheet | M24308/4-15Z.pdf |
| Voltage - DC Spark Over (Nom) | - | Voltage | - |
| Type Attributes | - | Termination | Crimp |
| Stacking Direction | Signal | Shell Size - Insert (Convert From) | Steel, Yellow Chromate Plated Zinc |
| Series | MIL-DTL-24308, D*MAM | RoHS Status | Bulk |
| Pitch - Connector | - | Other Names | 1200-1140 1200-1140-MIL 130777-0009 IM24308/4-15 IM24308/4-15-ND IM24308/4-15Z-ND M24308415Z |
| Operating Temperature | -55°C ~ 150°C | Number of Rows | 4 |
| Number of Positions | 78 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 13 Weeks | Manufacturer Part Number | M24308/4-15Z |
| Length - Threaded Portion Below Head | - | Features | Shielded |
| Expanded Description | 78 Position D-Sub, High Density Plug, Male Pins Connector, Panel Mount Crimp | Description | CONN DSUB HD PLUG 78POS PNL MNT |
| Current Rating (Per Contact) | Housing/Shell (Unthreaded) | Current Rating | 7.5A |
| Contact Form | 5 (DD, D) High Density | Contact Finish Thickness | Gold |
| Connector Usage | D-Sub, High Density | Connector Type | Plug, Male Pins |
| Color | - | Cable Opening | Thermoplastic |
| Cable Diameter | 50µin (1.27µm) | Backset Spacing | - |
