Conxall / Switchcraft
| Part Number | L712A | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PWR JACK 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38273 pcs | Data sheet | 1.L712A.pdf2.L712A.pdf |
| Voltage - Rated | 48V | Thread Size | - |
| Termination | Solder Eyelet(s) | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | SC1150 | Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |

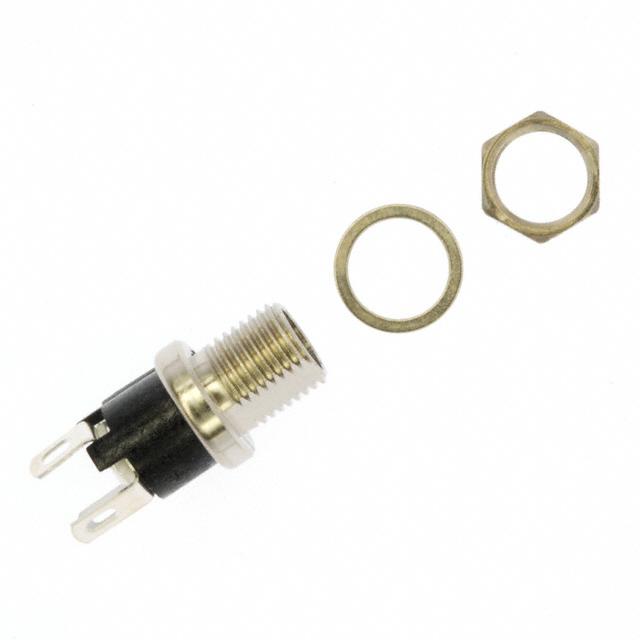

| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Thermoplastic |
| Gender | Male | Features | Mounting Hardware, Thread Lock |
| Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount | Current Rating | 5A |
| Contact Material - Plating | Silver | Contact Material | Copper Alloy |
| Connector Type | Jack | Body Material | Copper Alloy |
| Body Color | Silver, Black | Actual Diameter | 0.098" (2.50mm) |
