Conxall / Switchcraft

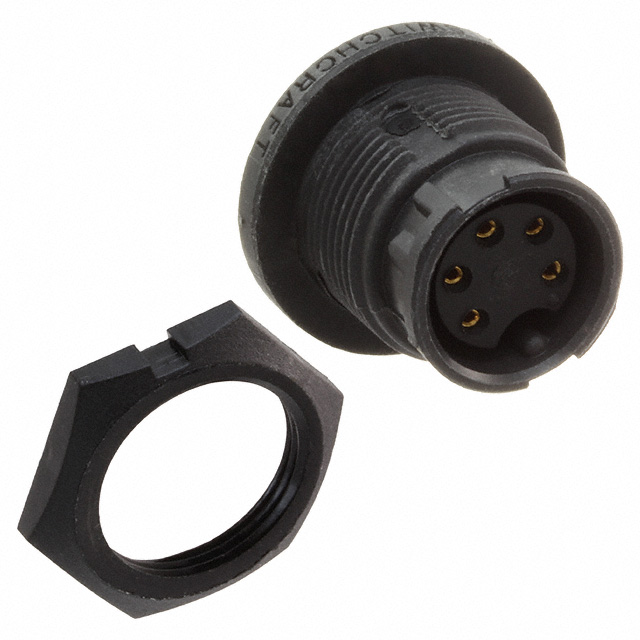

| Part Number | EN3P5FPX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT FMALE 5POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3623 pcs | Data sheet | 1.EN3P5FPX.pdf2.EN3P5FPX.pdf3.EN3P5FPX.pdf |
| Voltage Rating | 250VAC/DC | Termination | Solder |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Thermoplastic |
| Shell Finish | - | Series | EN3® |
| Packaging | Bulk | Other Names | EN3P5FP EN3P5FP-ND EN3P5FPX-ND SC2506 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 65°C |
| Number of Positions | 5 | Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Elastomer | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 5 Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | 7.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | General Purpose, Instrumentation, Marine, Medical |
