Conxall / Switchcraft

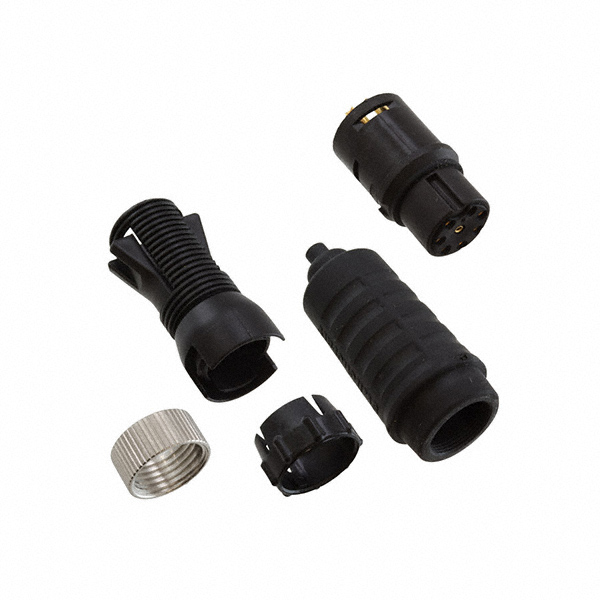

| Part Number | EN3C8FLX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2495 pcs | Data sheet | EN3C8FLX.pdf |
| Voltage Rating | 250VAC/DC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Thermoplastic |
| Shell Finish | - | Series | EN3® |
| Packaging | Bulk | Other Names | EN3C8FLX-ND Q7130566A SC1582 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 65°C |
| Number of Positions | 8 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Elastomer |
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | Features | Backshell, Cable Clamp, Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 8 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | 6.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | 0.230" ~ 0.380" (5.84mm ~ 9.65mm) | Backshell Material, Plating | Thermoplastic |
| Applications | General Purpose, Instrumentation, Marine, Medical |
