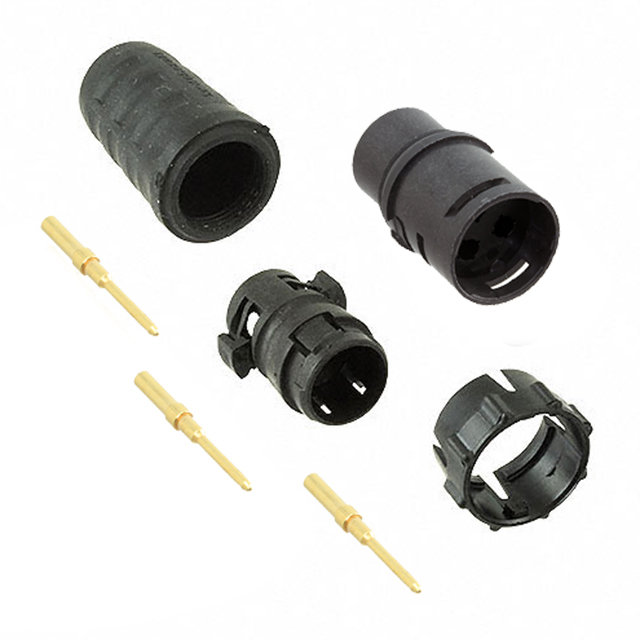

Conxall / Switchcraft
| Part Number | EN3C3MCX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG MALE 3POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12677 pcs | Data sheet | 1.EN3C3MCX.pdf2.EN3C3MCX.pdf3.EN3C3MCX.pdf |
| Voltage Rating | 250VAC/DC | Termination | Crimp |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Thermoplastic |
| Shell Finish | - | Series | EN3® |
| Packaging | Bulk | Other Names | EN3C3MC EN3C3MC-ND EN3C3MCX-ND SC2858 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 65°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Elastomer |
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | Features | Backshell, Cable Clamp, Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 3 Position Circular Connector Plug, Male Pins Crimp Gold |
| Current Rating | 7.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Male Pins | Color | Black |
| Cable Opening | 0.160" ~ 0.265" (4.06mm ~ 6.73mm) | Backshell Material, Plating | Thermoplastic |
| Applications | General Purpose, Instrumentation, Marine, Medical |
