Conxall / Switchcraft

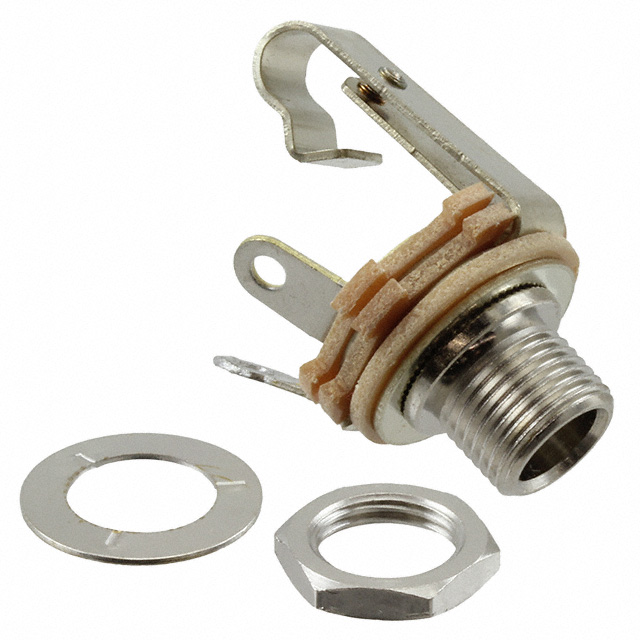

| Part Number | C12AX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK MONO 6.35MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6930 pcs | Data sheet | C12AX.pdf |
| Voltage - Rated | 25VDC | Thread Size | 3/8"-32 |
| Termination | Solder Eyelet(s) | Signal Lines | Mono |
| Shielding | Unshielded | Series | LITTEL-JAX® |
| Panel Hole Size | 0.375" (9.52mm) | Packaging | Bulk |
| Other Names | SC1090 | Operating Temperature | -20°C ~ 65°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | Not Applicable | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone | Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | - | Gender | Female |
| Features | Mounting Hardware, Thread Lock | Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s) |
| Current Rating | 1A | Contact Material - Plating | Nickel |
| Contact Material | Copper Alloy | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | Copper Alloy |
| Body Color | Silver | Actual Diameter | 0.250" (6.35mm) |
