Conxall / Switchcraft
| Part Number | 765K | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|

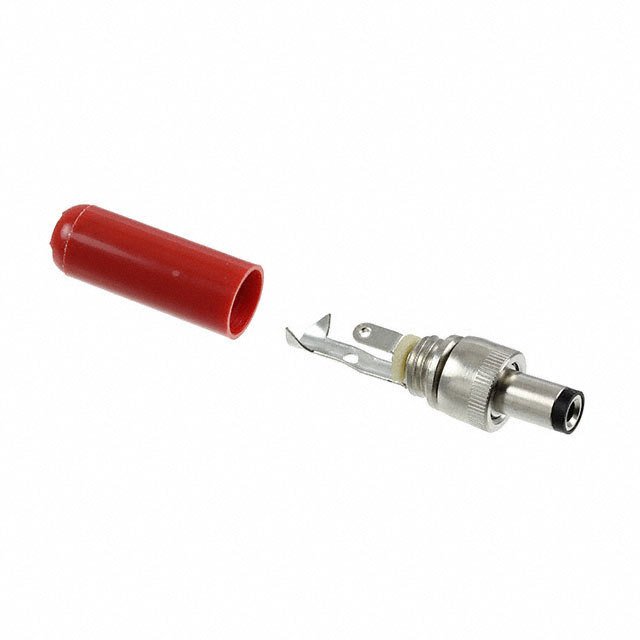

| Description | CONN PWR PLUG 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15925 pcs | Data sheet | 765K.pdf |
| Voltage - Rated | - | Thread Size | - |
| Termination | Solder Eyelet(s) | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | 765K-ND SC1909 |
Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Mating Length/Depth | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | Red | Ingress Protection | - |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") | Includes | 2 pcs - 1 Connector, 1 Handle |
| Housing Material | Thermoplastic | Gender | Female |
| Features | Thread Lock | Detailed Description | Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line) |
| Current Rating | 5A | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Plug |
| Body Material | Brass | Body Color | Silver, Red |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
