Conxall / Switchcraft
| Part Number | 712RAH | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | JACK, 2.5MM PIN, SHORT BUSHING, | Lead Free Status / RoHS Status | |
| Quantity Available | 19998 pcs | Data sheet | 1.712RAH.pdf2.712RAH.pdf |
| Voltage - Rated | 24VDC | Thread Size | 5/16"-32 |
| Termination | Solder Eyelet(s) | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | SC2652 | Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Mating Length/Depth | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Thermoplastic |
| Gender | Male | Features | Mounting Hardware, Thread Lock |

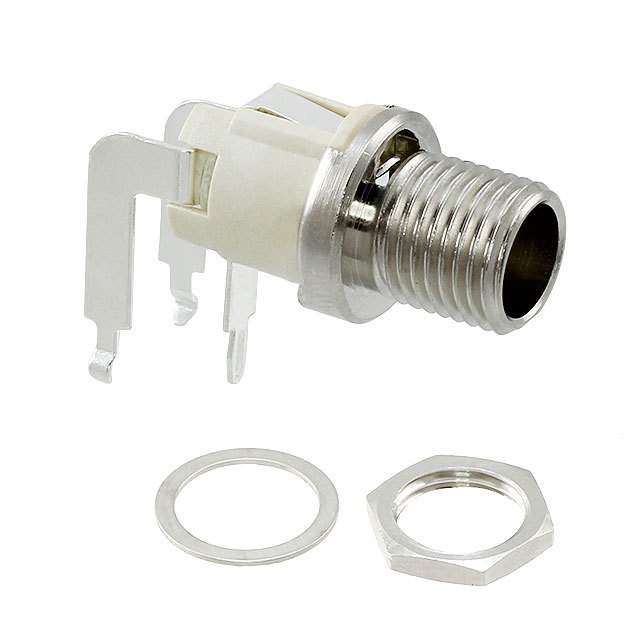

| Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle | Contact Material - Plating | Nickel |
| Contact Material | Copper Alloy | Connector Type | Jack |
| Body Material | Copper Alloy | Body Color | Silver, White |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
