Conxall / Switchcraft
| Part Number | 35PM1 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|

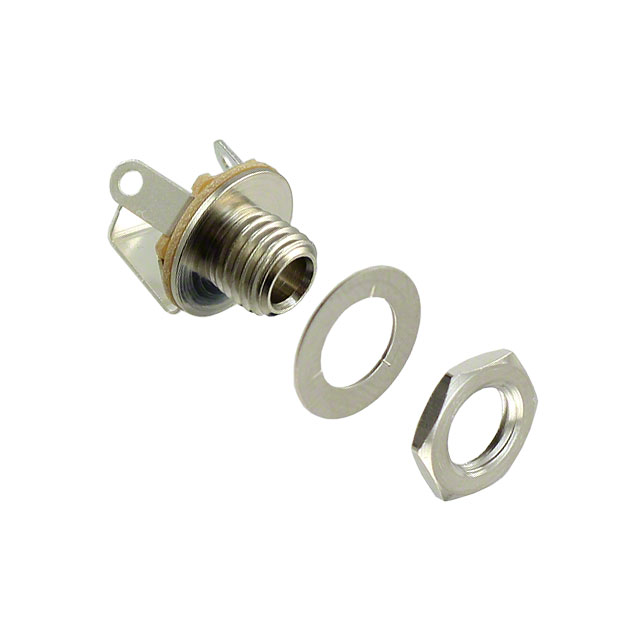

| Description | CONN JACK MONO 3.5MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38474 pcs | Data sheet | 1.35PM1.pdf2.35PM1.pdf3.35PM1.pdf |
| Voltage - Rated | 48VDC | Thread Size | 1/4"-32 |
| Termination | Solder Eyelet(s) | Signal Lines | Mono |
| Shielding | Unshielded | Series | 35PM |
| Panel Hole Size | 0.250" (6.35mm) | Packaging | Bulk |
| Other Names | 35PM1-ND SC1455 |
Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Copper Alloy | Gender | Female |
| Features | Mounting Hardware, Thread Lock | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s) |
| Current Rating | 250mA | Contact Material - Plating | Tin |
| Contact Material | Copper Alloy | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | Copper Alloy |
| Body Color | Silver | Actual Diameter | 0.142" (3.60mm) |
