Conxall / Switchcraft
| Part Number | 3282-9SG-530 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE 9POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5002 pcs | Data sheet | 1.3282-9SG-530.pdf2.3282-9SG-530.pdf |
| Voltage Rating | 600V | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - | Series | Multi-Con-X® |
| Packaging | Bulk | Other Names | 3282-9SG-530-ND SC2020 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 9 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | Weathertight | Features | Backshell, Cable Clamp |

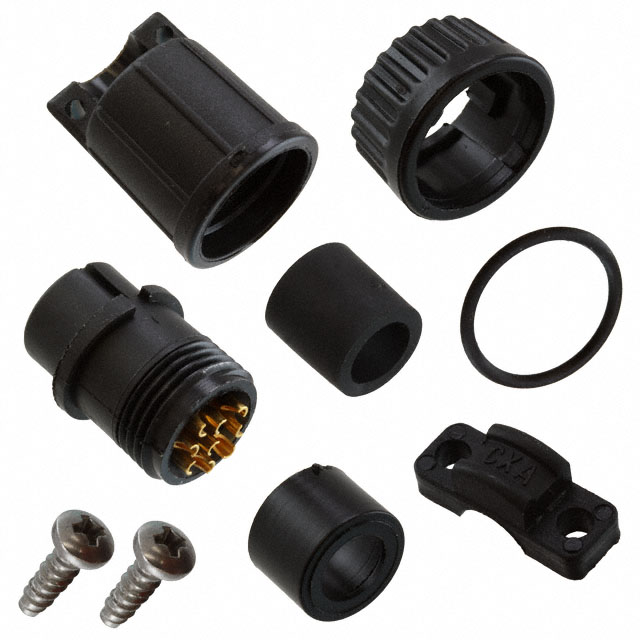

| Fastening Type | Bayonet Lock | Detailed Description | 9 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | 5.6A | Contact Material | Brass |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | 0.300" ~ 0.320" (7.62mm ~ 8.13mm) | Backshell Material, Plating | Polyamide (PA), Nylon |
| Applications | - |
