18980-5SG-522

Conxall / Switchcraft

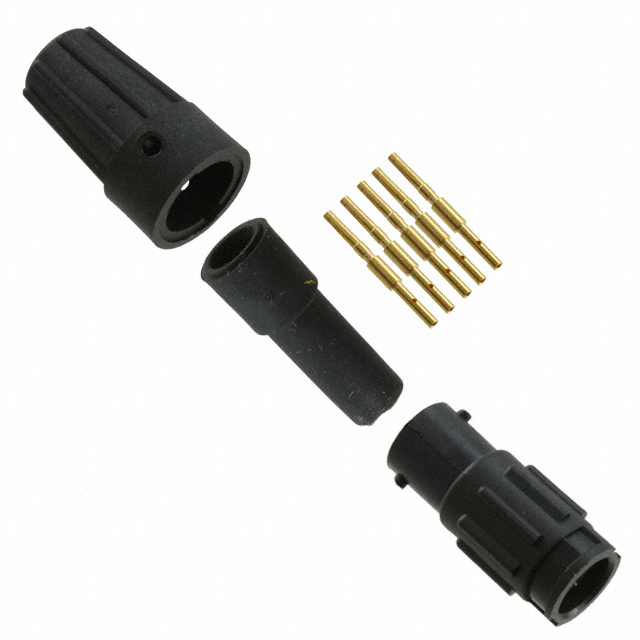

Image may be representation. See specifications for product details.

Product Overview

Part Number:	18980-5SG-522
Manufacturer/Brand:	Conxall / Switchcraft
Product description	CONN RCPT FMALE 5POS GOLD CRIMP
Datasheets:	1.18980-5SG-522.pdf 2.18980-5SG-522.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9818 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9818 pcs

Reference Price (In US Dollars)

1 pcs: $3.714

10 pcs: $3.375

25 pcs: $3.29

50 pcs: $3.037

100 pcs: $2.868

250 pcs: $2.615

500 pcs: $2.447

1000 pcs: $2.437

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.714

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 18980-5SG-522

Part Number	18980-5SG-522	Manufacturer	Conxall / Switchcraft
Description	CONN RCPT FMALE 5POS GOLD CRIMP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9818 pcs	Data sheet	1.18980-5SG-522.pdf 2.18980-5SG-522.pdf
Voltage Rating	600VAC/DC	Termination	Crimp
Shielding	Unshielded	Shell Size, MIL	-
Shell Size - Insert	-	Shell Material	Thermoplastic
Shell Finish	-	Series	Micro-Con-X®
Packaging	Bulk	Other Names	189805SG522 SC1438
Orientation	B	Operating Temperature	-40°C ~ 85°C
Number of Positions	5	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 HB	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insert Material	-
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Backshell
Fastening Type	Bayonet Lock	Detailed Description	5 Position Circular Connector Receptacle, Female Sockets Crimp Gold
Current Rating	4A	Contact Material	Copper Alloy
Contact Finish Thickness - Mating	-	Contact Finish - Mating	Gold
Connector Type	Receptacle, Female Sockets	Color	Black
Cable Opening	0.220" ~ 0.230" (5.59mm ~ 5.84mm)	Backshell Material, Plating	Thermoplastic
Applications	Data, Industrial, Instrumentation, Medical
