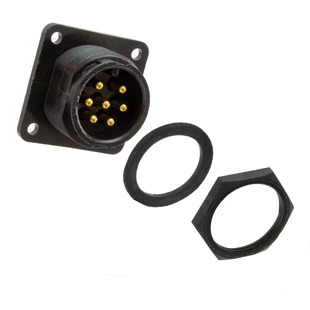

Conxall / Switchcraft
| Part Number | 14182-7PG-3ES | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6388 pcs | Data sheet | 1.14182-7PG-3ES.pdf2.14182-7PG-3ES.pdf |
| Voltage Rating | 600V | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - | Series | Maxi-Con-X® |
| Packaging | Bulk | Other Names | 14182-7PG-3ES-ND SC3074 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 7 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut, Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | Weathertight | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 7 Position Circular Connector Receptacle, Male Pins Solder Cup Gold |
| Current Rating | - | Contact Material | Brass |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Male Pins | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | - |
