12016X

Conxall / SwitchcraftConxall / Switchcraft

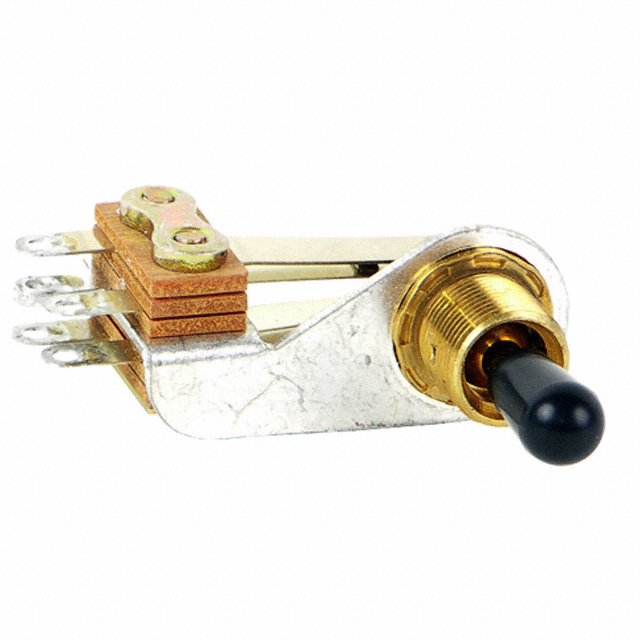

12016X Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 12016X
Manufacturer/Brand: Conxall / Switchcraft
Product description SWITCH TOGGLE 3POS R/A 1B/1B
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 1937 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 1937 pcs
Reference Price (In US Dollars)
10 pcs
$17.455
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$17.455

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 12016X

Part Number 12016X Manufacturer Conxall / Switchcraft
Description SWITCH TOGGLE 3POS R/A 1B/1B Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1937 pcs Data sheet
Termination Style Solder Lug Switch Function -
Series 12000 Panel Cutout Dimensions -
Packaging Bulk Operating Temperature -
Mounting Type Panel Mount, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 12 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection - Illumination Voltage (Nominal) -
Illumination Type, Color - Illumination Non-Illuminated
Features - Electrical Life -
Detailed Description Toggle Switch Panel Mount, Right Angle Current Rating -
Circuit - Bushing Thread 15/32-32
Actuator Type Standard Round Actuator Material Thermoplastic
Actuator Length 22.22mm
