HSM613-114.285M

Connor-Winfield

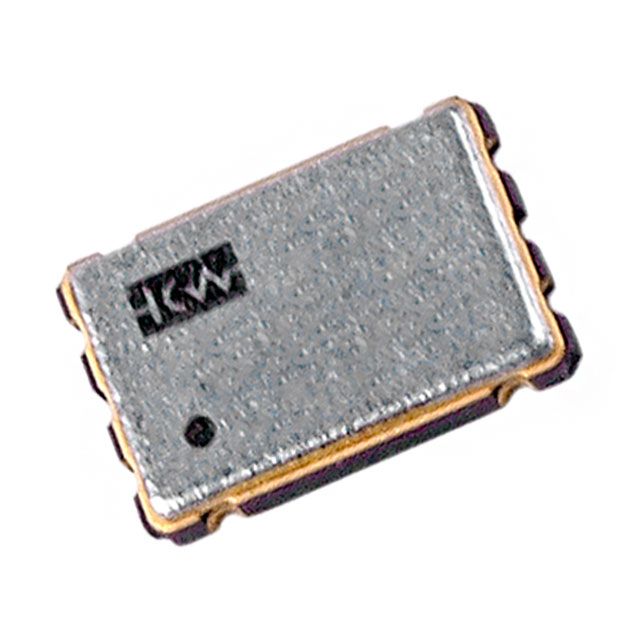

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HSM613-114.285M
Manufacturer/Brand:	Connor-Winfield
Product description	OSC XO 114.285MHZ HCMOS SMD
Datasheets:	HSM613-114.285M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34726 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34726 pcs

Reference Price (In US Dollars)

1000 pcs: $0.991

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.991

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HSM613-114.285M

Part Number	HSM613-114.285M	Manufacturer	Connor-Winfield
Description	OSC XO 114.285MHZ HCMOS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34726 pcs	Data sheet	HSM613-114.285M.pdf
Voltage - Supply	3.3V	Type	XO (Standard)
Size / Dimension	0.295" L x 0.197" W (7.50mm x 5.00mm)	Series	HSM6
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Output	HCMOS
Other Names	CW867TR	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.055" (1.40mm)	Function	Enable/Disable
Frequency Stability	±25ppm	Frequency	114.285MHz
Detailed Description	114.285MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead	Current - Supply (Max)	40mA
Current - Supply (Disable) (Max)	10µA	Base Resonator	Crystal
