HSM536-25.0000

Connor-Winfield

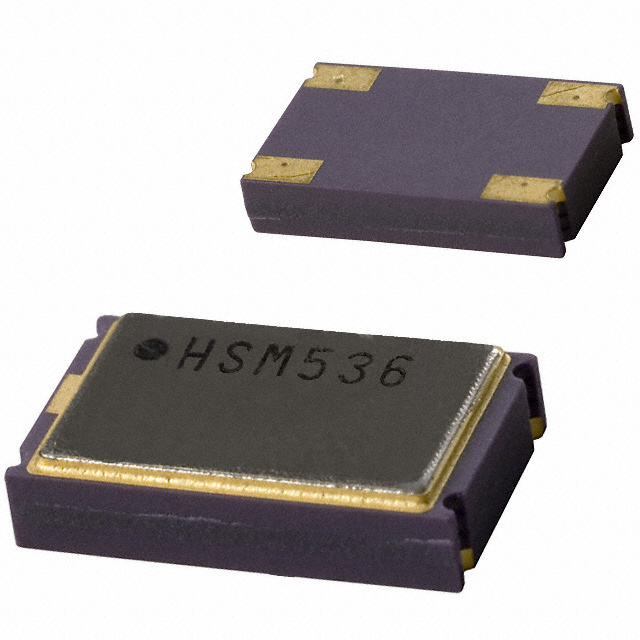

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HSM536-25.0000
Manufacturer/Brand:	Connor-Winfield
Product description	OSC XO 25.000MHZ HCMOS SMD
Datasheets:	HSM536-25.0000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12676 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12676 pcs

Reference Price (In US Dollars)

25 pcs: $2.312

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.312

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HSM536-25.0000

Part Number	HSM536-25.0000	Manufacturer	Connor-Winfield
Description	OSC XO 25.000MHZ HCMOS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12676 pcs	Data sheet	HSM536-25.0000.pdf
Voltage - Supply	5V	Type	XO (Standard)
Size / Dimension	0.435" L x 0.250" W (11.05mm x 6.35mm)	Series	HSM536
Ratings	-	Packaging	Tube
Package / Case	4-SMD, No Lead	Output	HCMOS
Other Names	CW324	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.105" (2.67mm)
Function	Enable/Disable	Frequency Stability	±100ppm
Frequency	25MHz	Detailed Description	25MHz XO (Standard) HCMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
Current - Supply (Max)	30mA	Current - Supply (Disable) (Max)	-
Base Resonator	Crystal
