Conec
| Part Number | 6STD15PCM99B30X | Manufacturer | Conec |
|---|---|---|---|

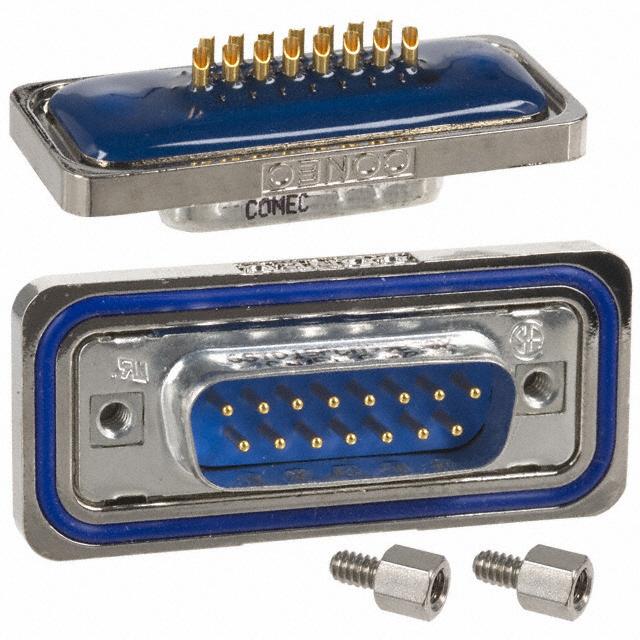

| Description | CONN D-SUB PLUG 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3570 pcs | Data sheet | 6STD15PCM99B30X.pdf |
| Wire Gauge | 20 AWG | Voltage Rating | - |
| Termination | Solder Cup | Shell Size, Connector Layout | 2 (DA, A) |
| Shell Material, Finish | Copper Alloy, Tin Plated | Series | - |
| Packaging | Tray | Other Names | 626-1165 |
| Operating Temperature | -25°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 15 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | - |
| Detailed Description | 15 Position D-Sub Plug, Male Pins Connector | Current Rating | 5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Machined | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
