Conec

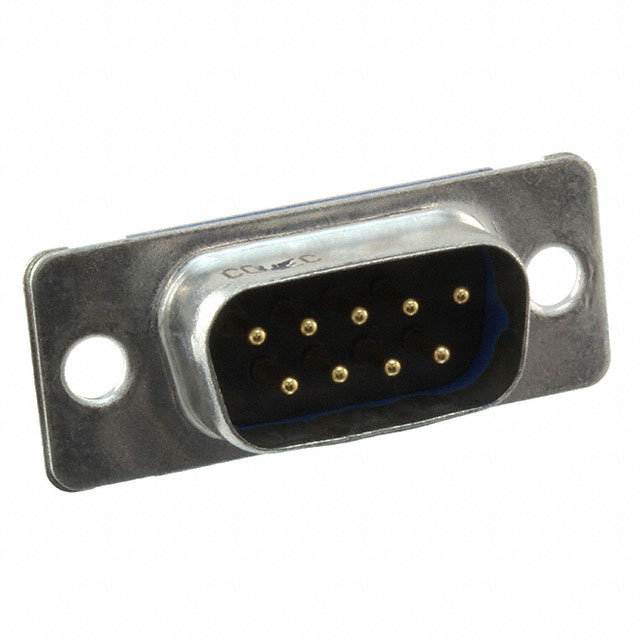

| Part Number | 4STD09PCM99A10X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN DSUB PLUG 9POS STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6826 pcs | Data sheet | 4STD09PCM99A10X.pdf |
| Wire Gauge | 20 AWG | Voltage Rating | - |
| Termination | Solder Cup | Shell Size, Connector Layout | 1 (DE, E) |
| Shell Material, Finish | Copper Alloy, Tin Plated | Series | - |
| Packaging | Bulk | Other Names | 4STD09PCM99A10X-ND 626-1944 Q4144651A |
| Operating Temperature | -25°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Grounding Indents |
| Detailed Description | 9 Position D-Sub Plug, Male Pins Connector | Current Rating | 5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
