Conec

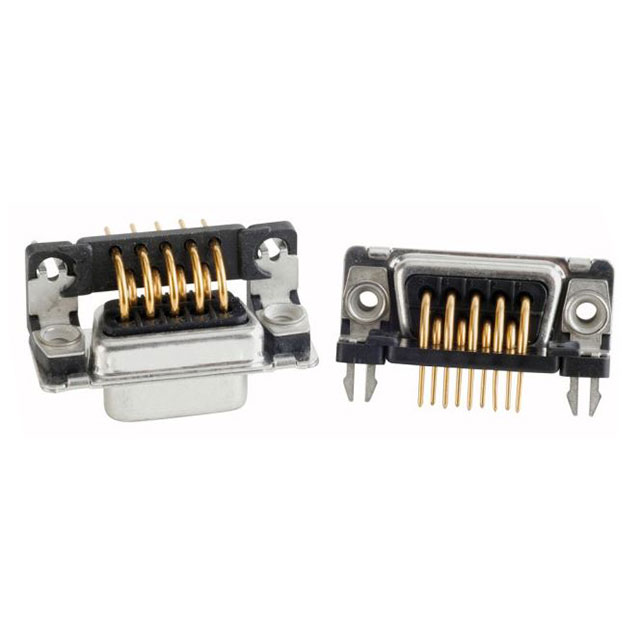

| Part Number | 164A18889X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7932 pcs | Data sheet | 164A18889X.pdf |
| Wire Gauge | - | Voltage Rating | 125V |
| Termination | Solder | Shell Size, Connector Layout | 1 (DE, E) |
| Shell Material, Finish | Steel, Tin Plated | Series | 164A |
| Packaging | - | Other Names | 164A18889X-ND 626-1900 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Mating Side (4-40) | Features | Board Lock, Mounting Brackets |
| Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 7.5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Machined | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | 0.283" (7.20mm) |
