Conec
| Part Number | 164A18189X | Manufacturer | Conec |
|---|---|---|---|

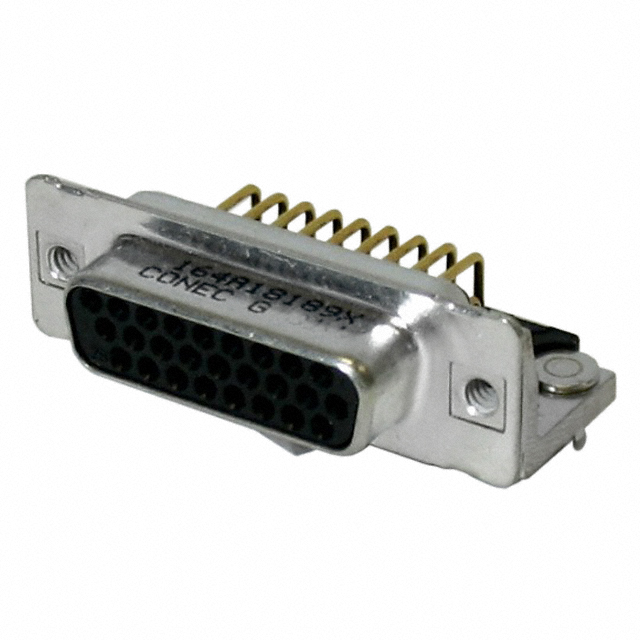

| Description | CONN DSUB HD RCPT 26POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5352 pcs | Data sheet | 164A18189X.pdf |
| Wire Gauge | - | Voltage Rating | 60V |
| Termination | Solder | Shell Size, Connector Layout | 2 (DA, A) High Density |
| Shell Material, Finish | Steel, Tin Plated | Series | 164A |
| Packaging | Bulk | Other Names | 164A18189X-ND 626-2215 Q4545107B |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 3 |
| Number of Positions | 26 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock |
| Detailed Description | 26 Position D-Sub, High Density Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Machined | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | 0.314" (7.98mm) |
