Conec
| Part Number | 15-006563 | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2619 pcs | Data sheet | 15-006563.pdf |
| Wire Gauge | - | Voltage Rating | 125V |
| Termination | Solder | Shell Size, Connector Layout | 3 (DB, B) |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | Series | SlimCon |
| Packaging | Bulk | Other Names | 626-1853 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 25 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) |

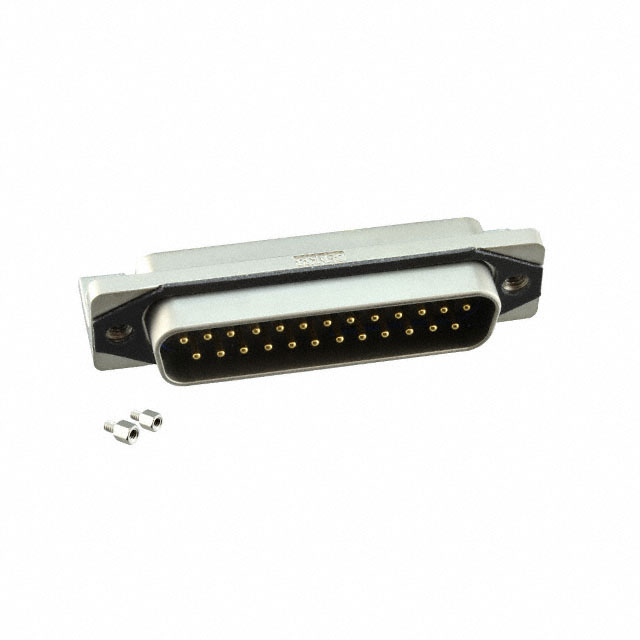

| Features | Board Lock, Gasket, Mounting Brackets | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.232" (5.89mm) |
