Conec
| Part Number | 15-006293 | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4862 pcs | Data sheet | 15-006293.pdf |
| Wire Gauge | 20 AWG | Voltage Rating | 125V |
| Termination | Solder Cup | Shell Size, Connector Layout | 1 (DE, E) |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | Series | SlimCon |
| Packaging | Bulk | Other Names | 626-1854 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Cable Side (4-40); Mating Side, Female Screwlock (4-40) | Features | Gasket |

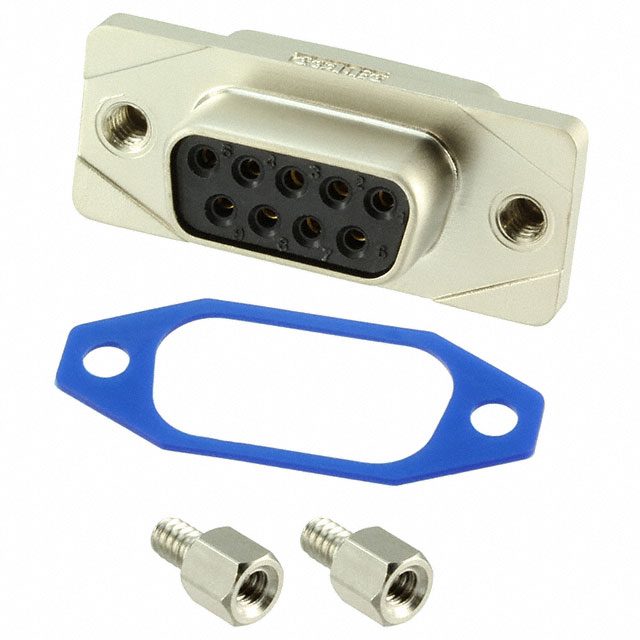

| Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 7.5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
