Comus International
| Part Number | RI-80SMD0515-G1 | Manufacturer | Comus International |
|---|---|---|---|

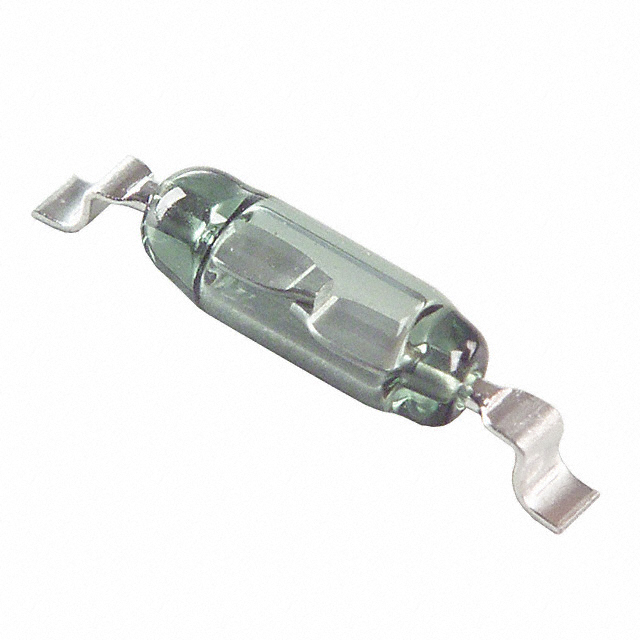

| Description | SWITCH REED SPST-NO 250MA 140V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4980 pcs | Data sheet | 1.RI-80SMD0515-G1.pdf2.RI-80SMD0515-G1.pdf |
| Voltage - Switching DC | 175V | Voltage - Switching AC | 140V |
| Type | Glass Body | Termination Style | Gull Wing |
| Size - Body | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | Series | RI-80 |
| Release Time | 0.02ms | Release Range | 2 ~ 13AT |
| Power - Rated | 5W | Packaging | Tape & Reel (TR) |
| Other Names | 306-1145-2 RI-80 SMD G1 RI-80SMDG1 |
Operating Temperature | -55°C ~ 125°C |
| Operate Time | 0.35ms | Operate Range | 5 ~ 15AT |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Overall | 0.342" (8.68mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.076" (1.92mm) | Detailed Description | Glass Body Reed Switch SPST-NO 5 ~ 15AT Operate Range 5W 250mA (AC), 350mA (DC) 140V Surface Mount |
| Current - Switching | 250mA (AC), 350mA (DC) | Current - Carry | 500mA (AC/DC) |
| Circuit | SPST-NO | Capacitance | 0.45pF |
